2000W Squid Fishing Lamp BT230 metal halide fishing lights

Short Description:

Produced in the best dust-free workshop

Buy the best chips

And quartz material

Higher initial brightness

Lower rate of light decay

Quick relight

Send email to us

Product Detail

Product Tags

Boat-metal halide fishing lights

No difference in brightness through out the life.

Easy to install and to change.

Use E33 material, strong thermal shock resistance.

No breakage even in wet condition.

New design with high quake-resistance.

1000W to 4000W is available

Product Parameters

Product Numbe	Lamp holder	Lamp Power [ W ]	Lamp Voltage [ V ]	Lamp Current [A ]	STEEL Starting Voltage ：
TL-2KW/BTG	E39/E40	1800W±5%	230V±20	8.8A	[ V ] < 500V
Lumens [Lm]	Efficiencv [Lm/W ]	Color Temp [ K ]	Starting Time	Re-starting Time	Average Life
220000Lm ±5%	120Lm/W	3600K/4000K/4800K/Custom	5min	20 min	2000 Hr About 30% attenuation
Weight[ g ]	Packing quantity	Net weight	Gross weight	Packaging Size	Warranty

Product Description

2000W glass shell fishing lamp adopts special explosion-proof glass and high-quality lamp cap, and the torque of lamp cap is ≥ 10N / m. After 20 years of craftsman welding technology, the lamp cap will not explode cold. Using the special production formula of Jinhong, it has super penetration and high light effect, and can lure fish to gather together quickly.

The 2000W glass fish lamp has a shell size of bt230. There are also two sizes of BT200 shell for customers to choose.

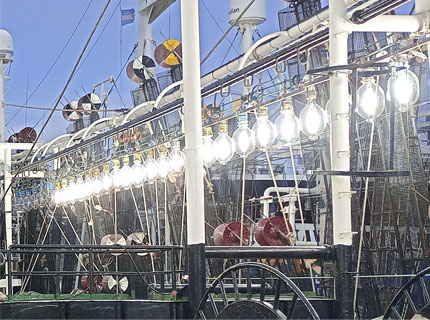

At present, the company produces 1000W, 1500W, 2000W, 3000W and 4000W glass A fishing light used on the deck of a fishing boat.

We can customize the lighting color you need according to your requirements

Please note:：

All fish lamp products should be matched with corresponding ballast and waterproof lamp holder. So as not to affect the use effect of the bulb.

Theoretical Figures

NO.	Product Name	Theoretical figures				Secondary stare time（Min）	Light Color	Size	Material
NO.	Product Name	Power （W）	Flux （lm）	Power （W）	Flux （lm）	Secondary stare time（Min）	Light Color	Size	Material
TL-1KW/MK	1KW-Aerial fish lamp	1000W	120000	1000W	120000	20	white、green、blue	BT180	Glass
TL-1.5KW/MK	1.5KW-Aerial fish lamp	1500W	160000	1400W	150000	20	white、green、blue	BT190	Glass
TL-2KW/MK	2KW-Aerial fish lamp	2000W	240000	1800W	206000	20	white、green、blue	BT200、BT230	Glass
TL-3KW/MK	3KW-Aerial fish lamp	3000W	340000	2700W	315000	20	white、green、blue	BT260	Glass
TL-4KW/MK	4KW-Aerial fish lamp	4000W	450000	3600W	410000	20	white、green、blue	BT290	Glass

Certificate

X Regarding the types of fish the color of the light
there are many theories,however it is reasonable to
assume that with a good wavelength and good sea
water translucency allows for superior fish luring.The
catch above represents the sea areas and the
translucency of light for each wavelength.We suggest
that you select the light with the wavelength that
suitable for the water color of the fishing ground.

PHLOONG Factory Advantages

Source factory, integrated industry and trade, dual advantages of cost and efficiency

We have our own factory, which integrates R&D, mold development, light bulb accessories, light bulb tubes, assembly, and quality control. By eliminating the middleman, we ensure that you get the most competitive factory price and a more agile delivery response.

Frequently Asked Questions

Vertically integrated manufacturing, with quality controlled throughout the entire process

From a grain of quartz raw material to a precision electronic component, and finally to the finished lighting fixture, all key production processes are completed in our own factories. This vertically integrated model gives us absolute control over raw material selection, production processes, and quality standards, ensuring that every product meets stringent requirements.

The industry's best R&D engineers and senior technical workers in the production workshop work together to ensure core performance

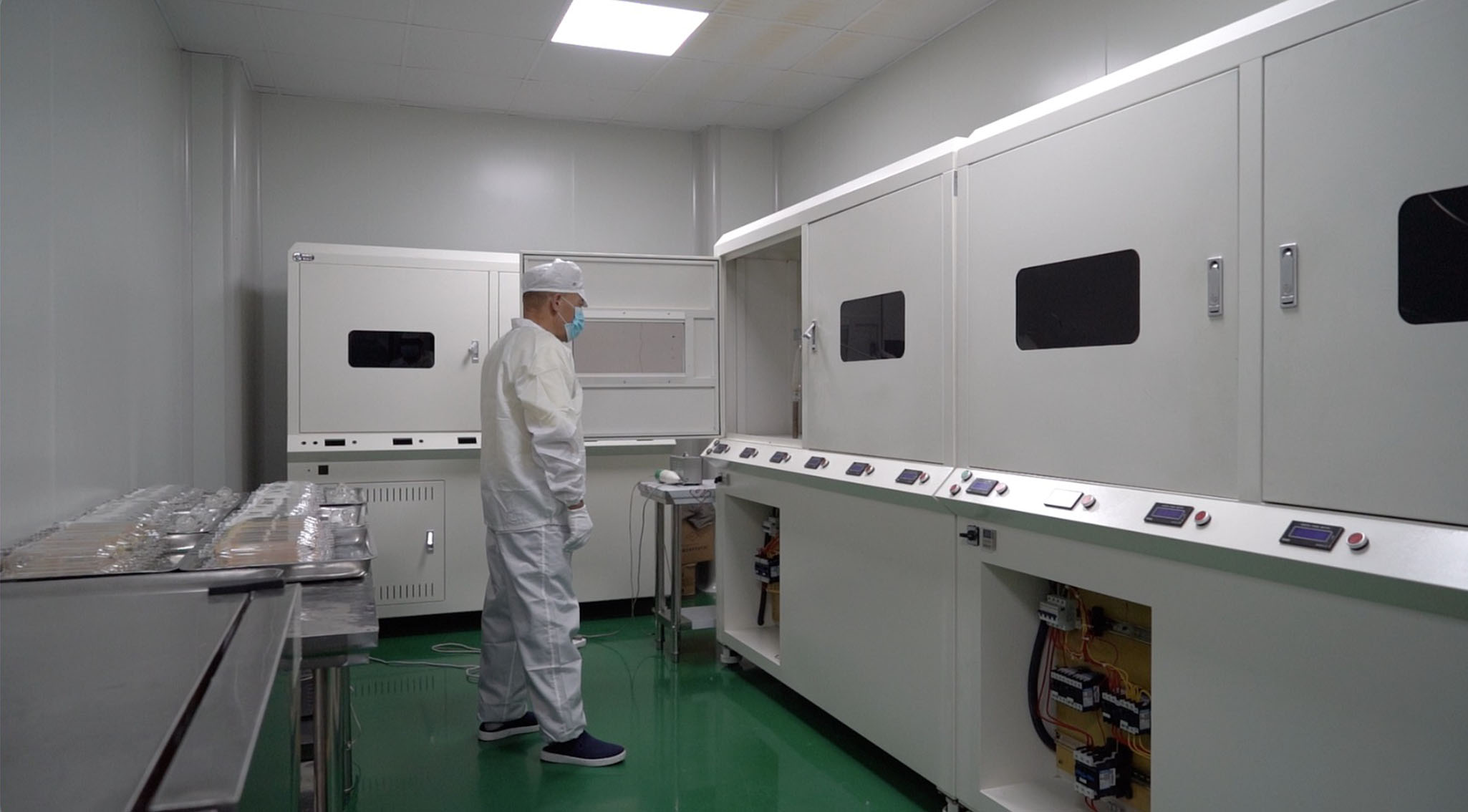

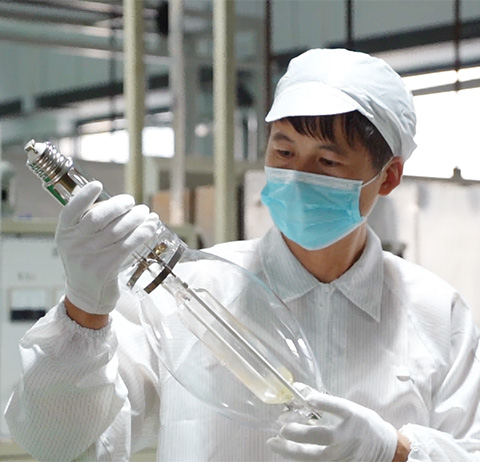

Equipped with an automated light tube production line and a high-standard dust-free assembly workshop. Under the control of precision electronic equipment, pill injection and special gas filling are more accurate and efficient, ensuring stable quality of the core light tubes. The manual assembly process follows strict SOPs and combines multiple inspections to ensure that the core performance of each lamp, such as luminous efficiency, battery life, and waterproofing, is stable and reliable.

Strict quality control system, backed by international certification

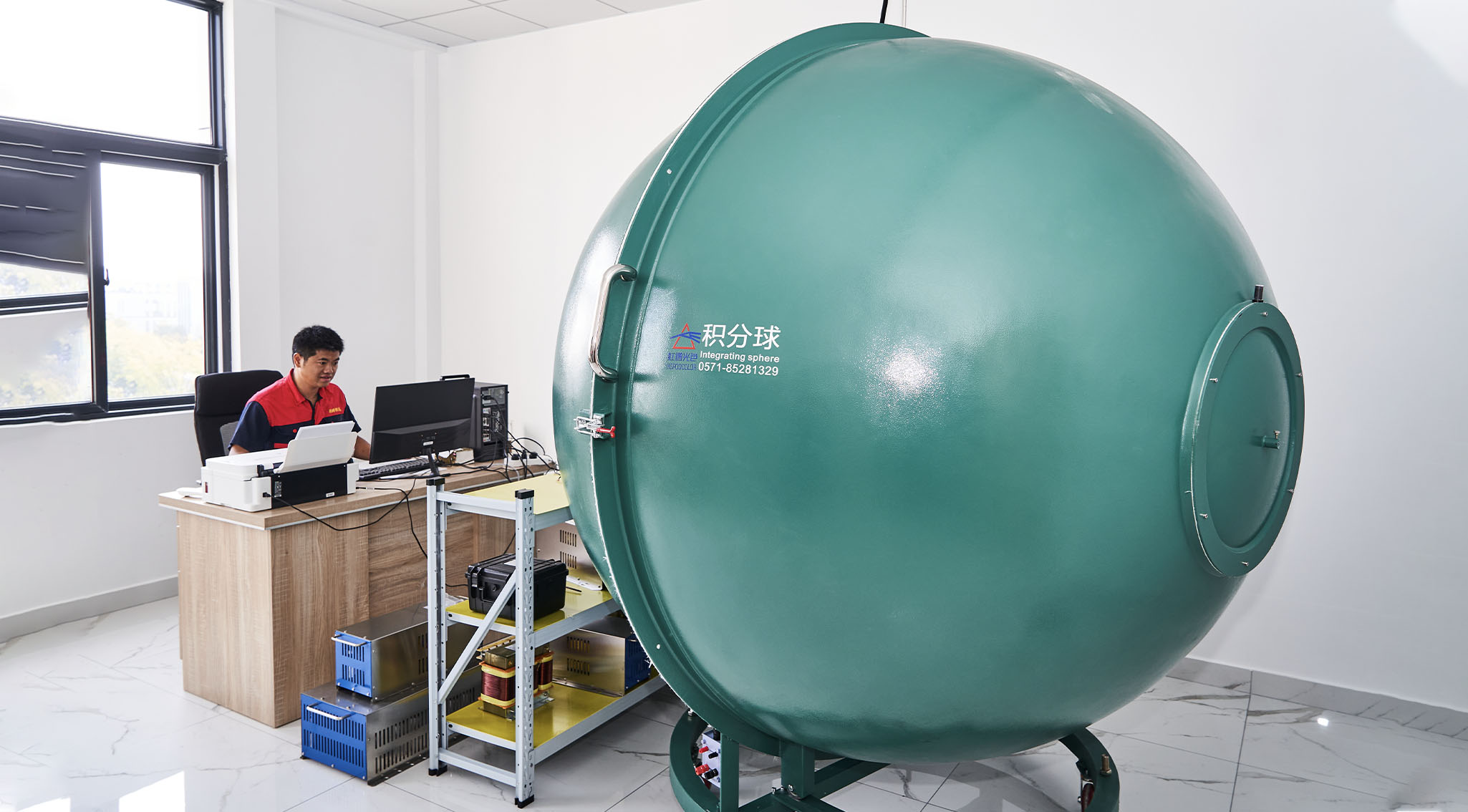

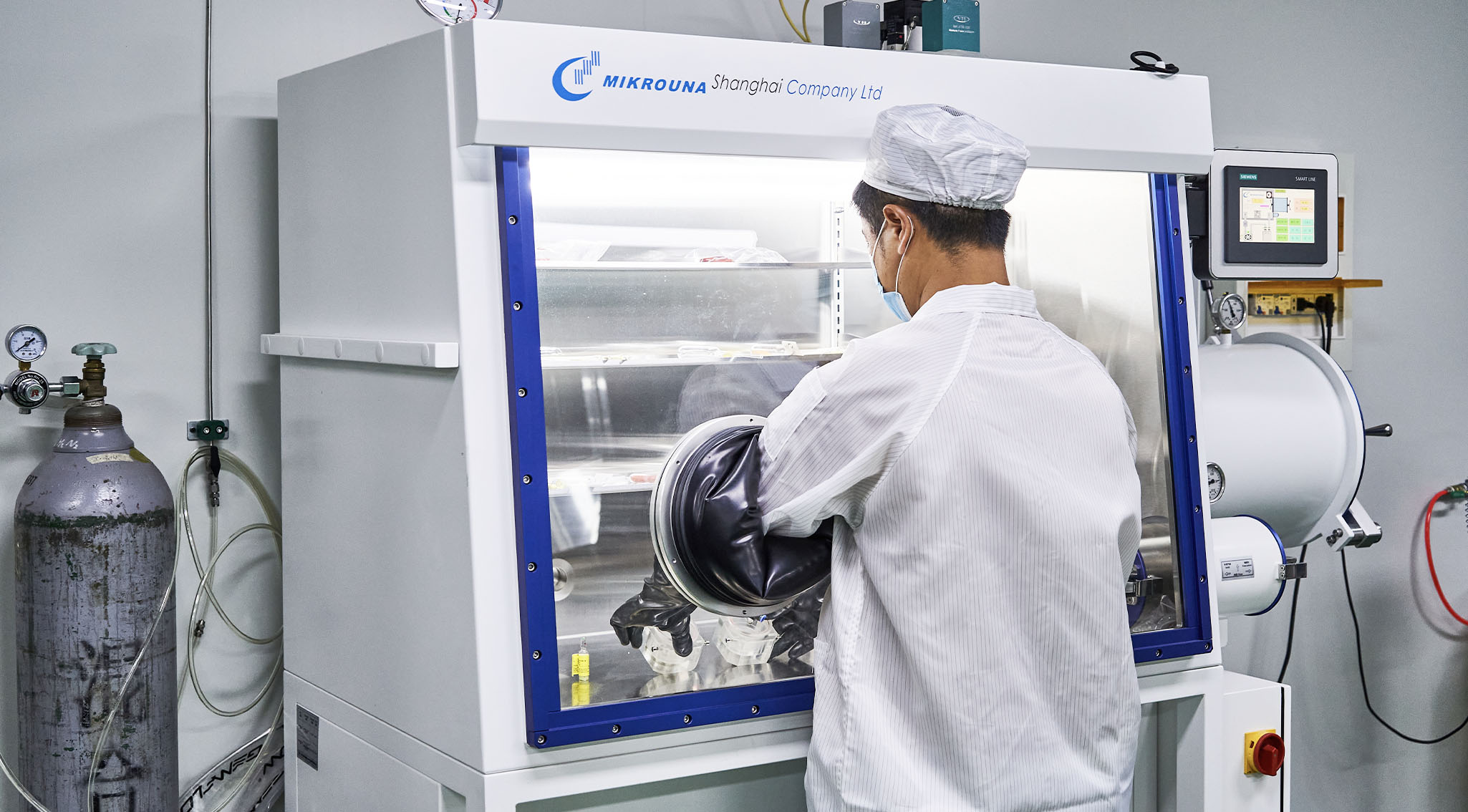

We have established a comprehensive quality management system that spans the entire process from R&D, incoming materials, manufacturing, to finished products. We have professional testing equipment and laboratories (as shown on our website) to strictly control parameters such as luminous flux, color temperature, waterproof rating (IPX8) (with corresponding sealed lighting fixtures), aging tests, and underwater lighting pressure tests. Our products comply with safety and environmental standards for fishing vessels, helping you enter your target market with confidence.

Focus on innovation, with in-depth support from the engineering team

With over a decade of experience in the fishing tackle and lighting industry, we have a team of experienced engineers. We not only focus on the continuous optimization of existing products, but also provide professional ODM/OEM solutions based on your market insights and unique needs, working together to develop new products that lead the market.

Flexible production and rapid response to market changes

With the flexibility of our own factory, we can quickly respond to small and medium-sized orders and guarantee stable delivery of large orders. We can flexibly accommodate your trial orders, repeat orders, or peak season demands to seize market opportunities together.

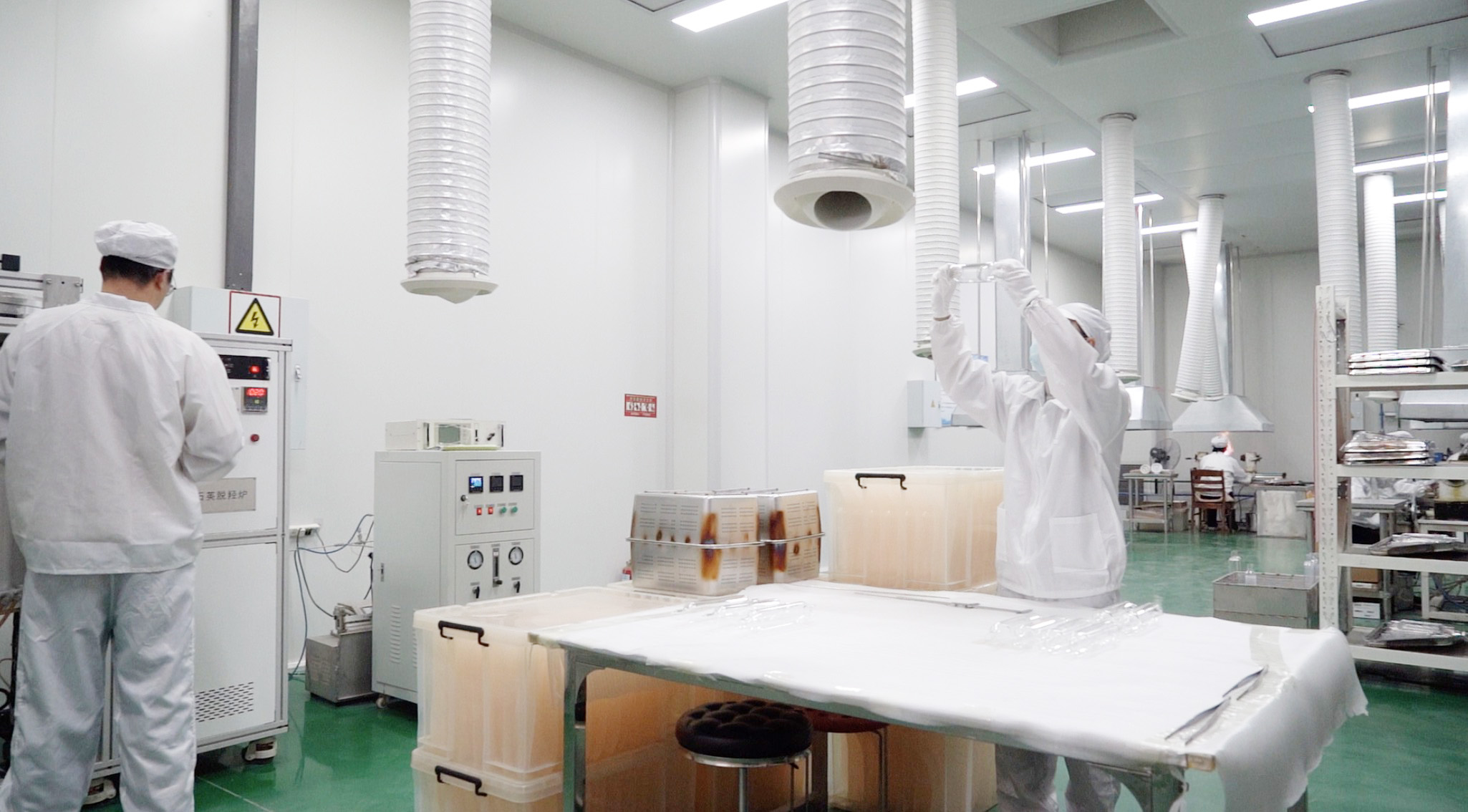

Only medical-grade clean workshop in the country

25 years of lighting manufacturing technical expertise combined with the only medical-grade clean workshop in the country lay the foundation for our products：

We have a professional lighting design and development team and modern medical-grade high-cleanliness workshops. We are able to efficiently complete the stability of product light sources and the perfect welding and production of precision structural components, ensuring that the product structure is sturdy, the appearance is exquisite, and the dimensions are accurate, laying a solid foundation for the reliability and durability of the lighting fixtures.

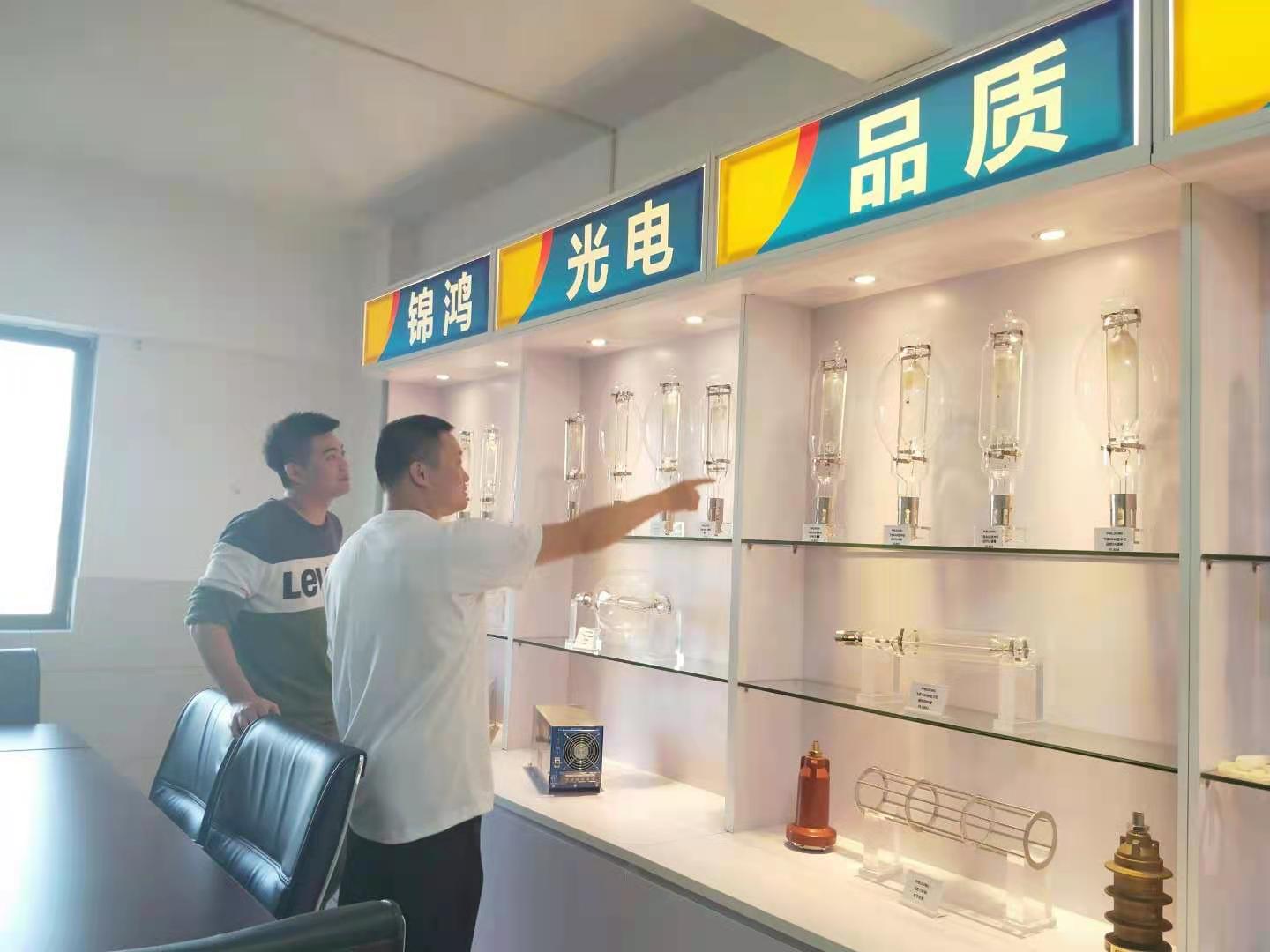

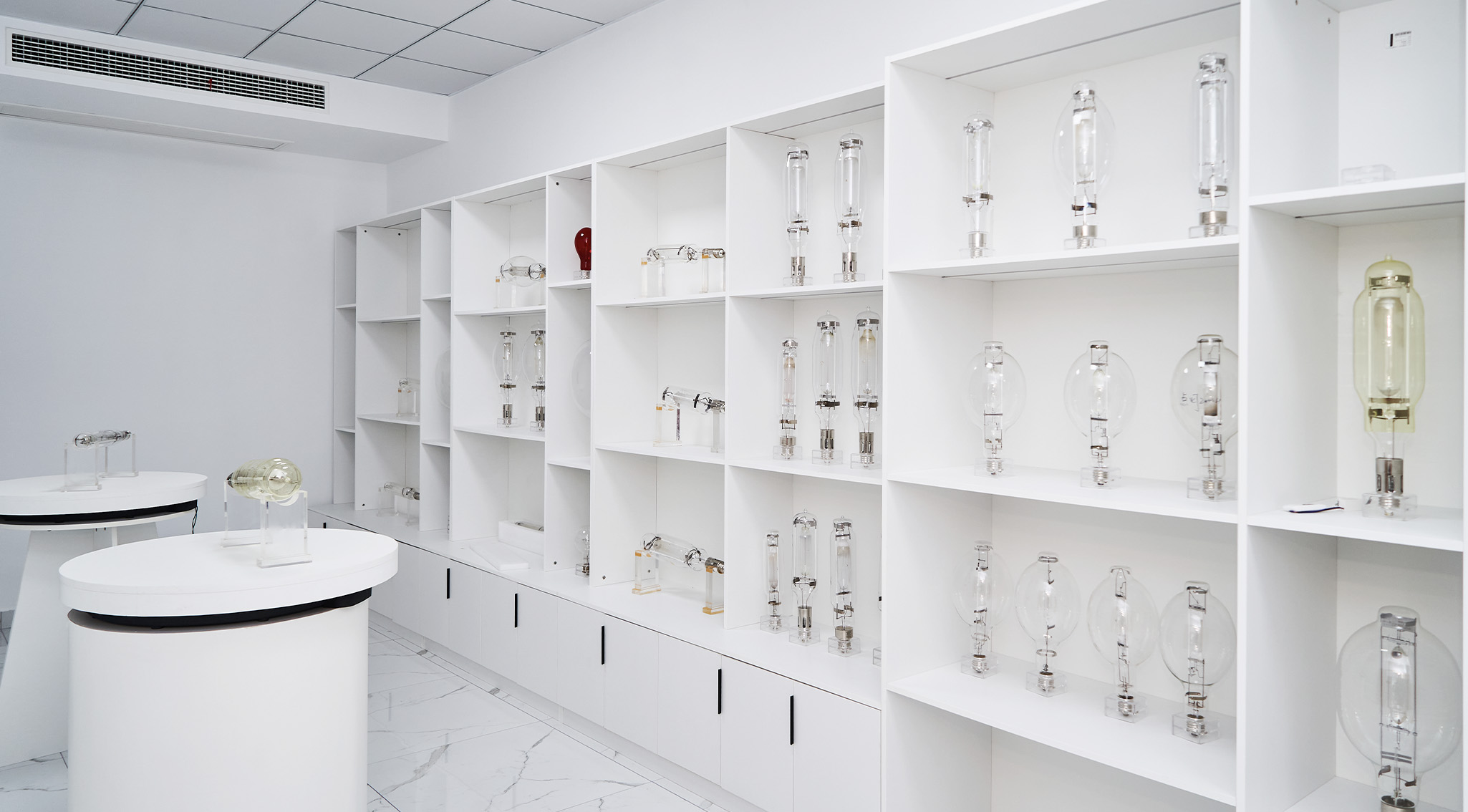

Sample Room

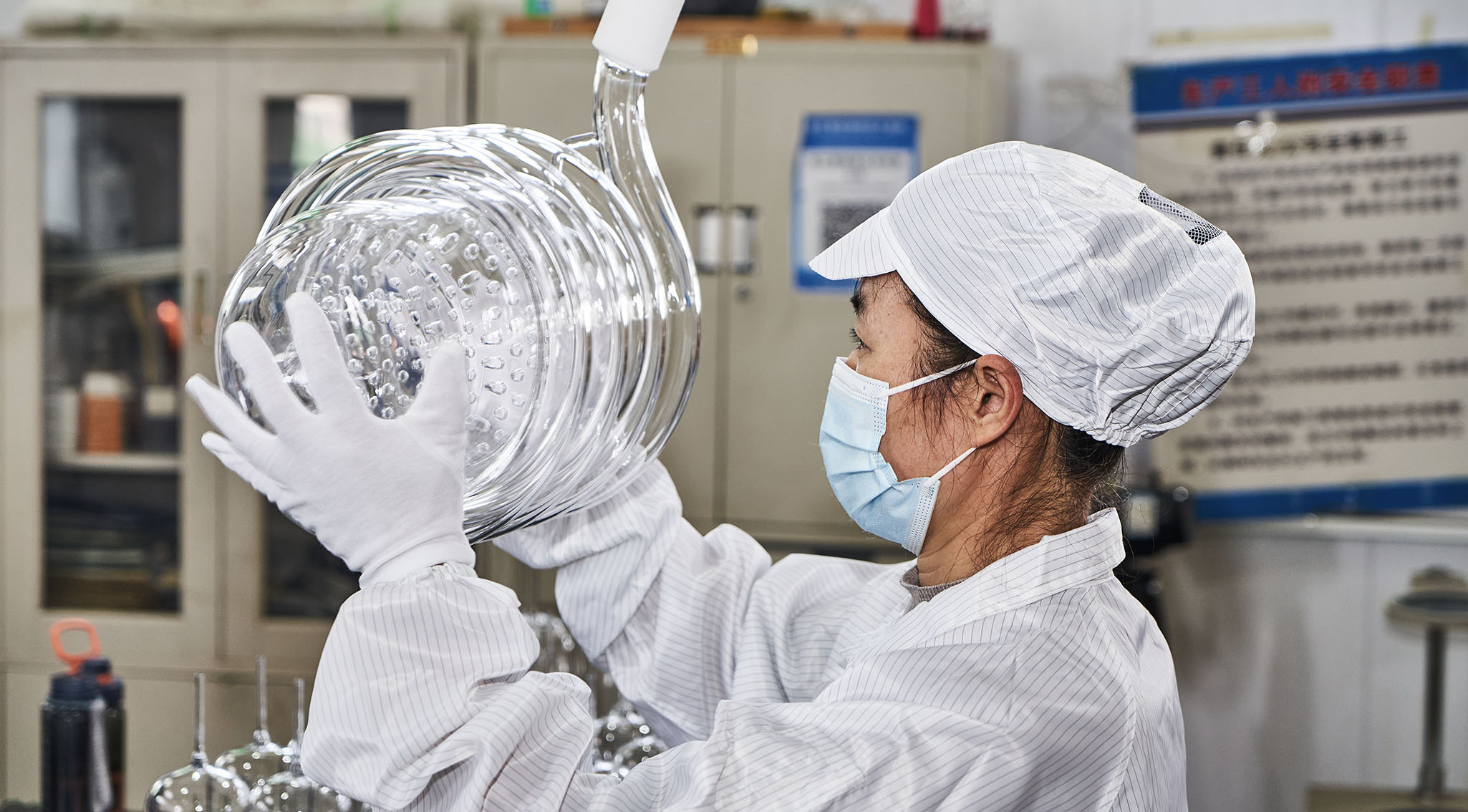

Quartz Accessories Workshop

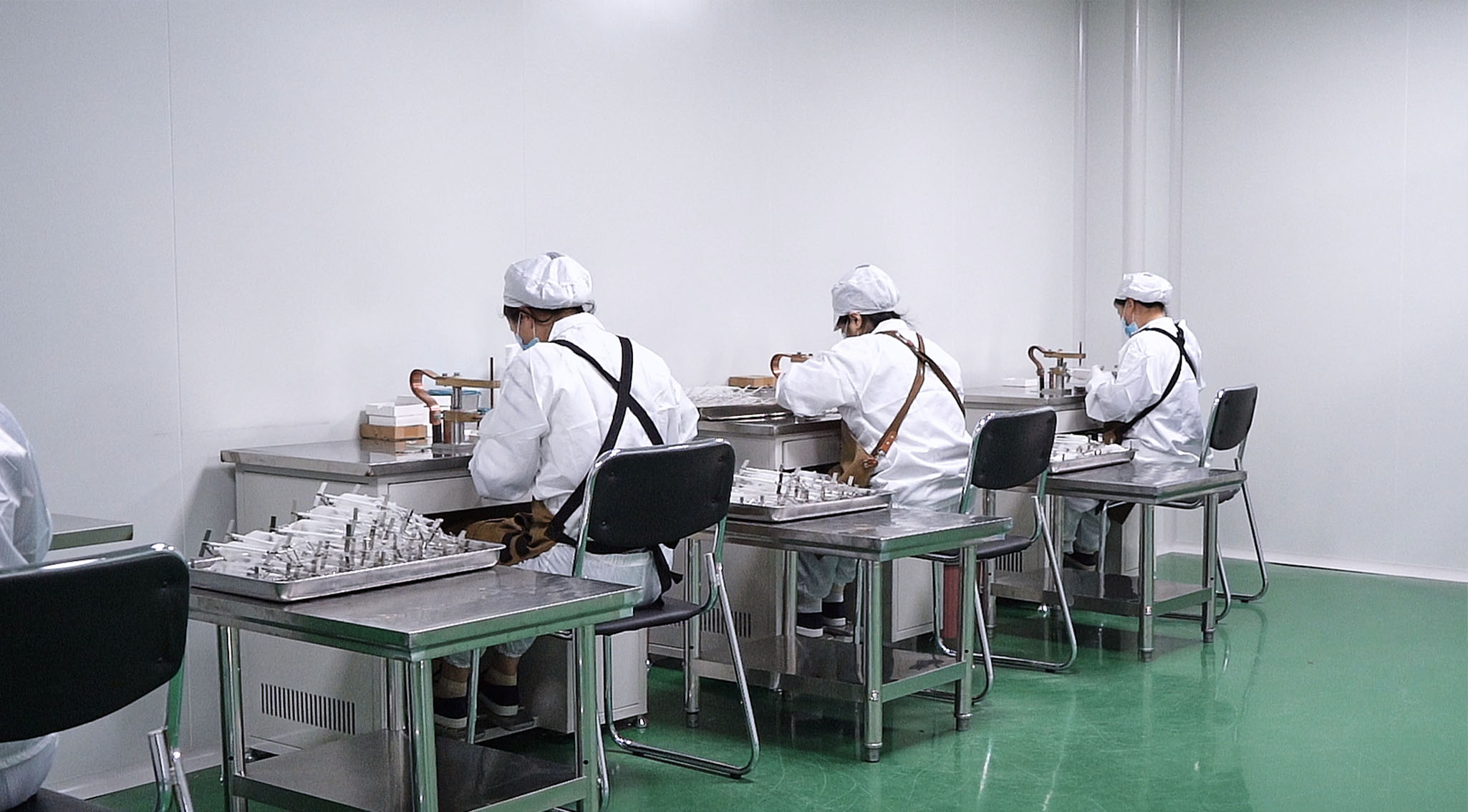

Precision Workshop

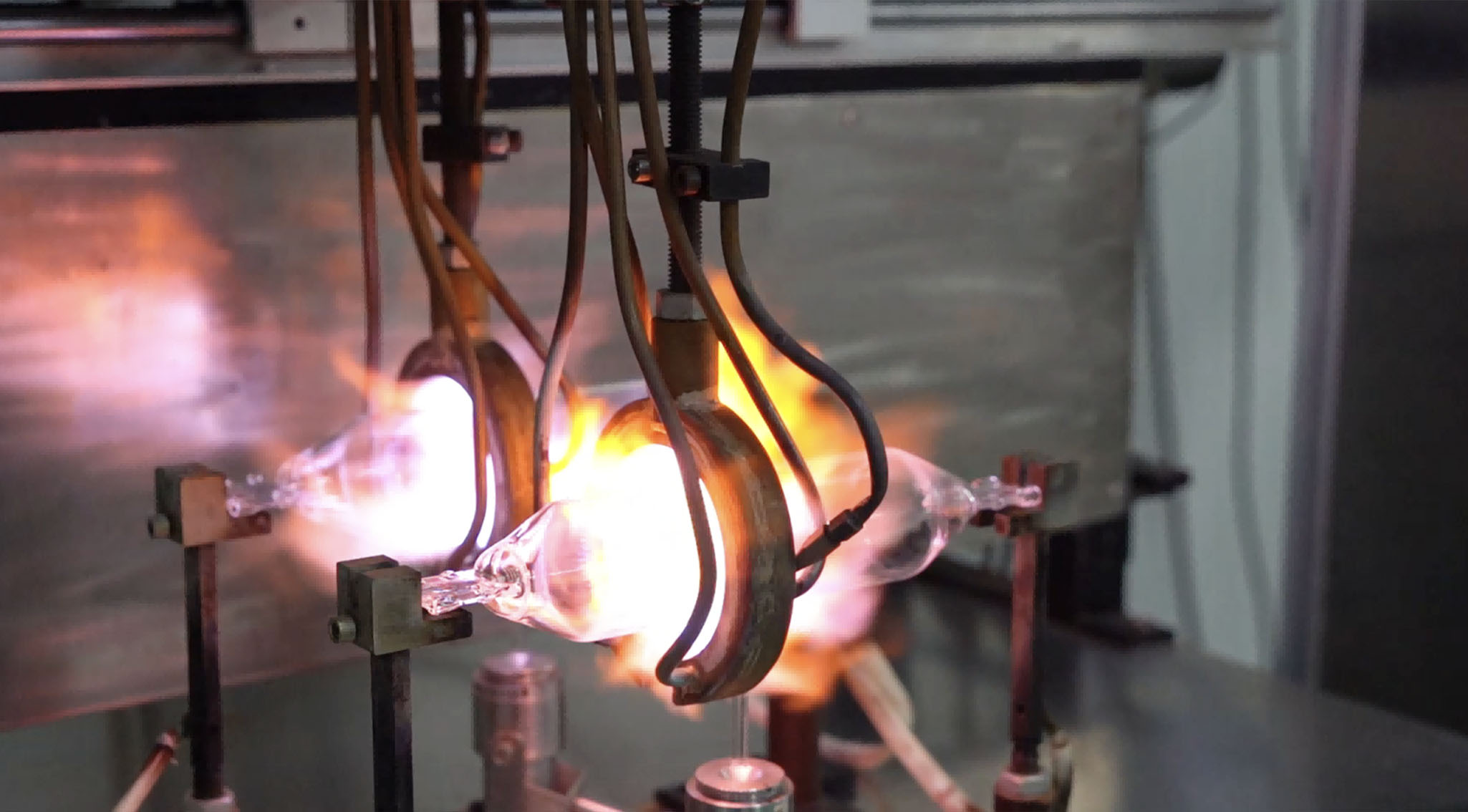

Welding Workshop

Light Arc Manufacturing Workshop

Light Arc Materials Workshop

PHLOONG Service Advantages

One-stop service, hassle-free and efficient cooperation

From concept communication, design prototyping, mass production manufacturing to quality inspection and shipment, we provide a one-stop service throughout the entire process. You only need to contact us through a single point of contact to efficiently resolve all issues related to product manufacturing, significantly reducing communication and management costs.

1. One-stop service, hassle-free and efficient cooperation

Factory-direct company, with costs reduced by 15%+

“We are not middlemen; every penny you pay goes directly into the product itself.

With our own raw material production workshops, HID tube production lines, and assembly lines, we eliminate all markups in the supply chain,

offering you the advantage of factory-direct pricing. Compared to similar products, you save over 15% on costs.

✓ Customer benefits: Access fishing lights comparable to Japanese and Korean brands, with competitive end-user pricing and greater profit margins.

✓ Secure a competitive edge in the market and maintain momentum during peak seasons!

Direct Cost Reduction

Immediate Cost Savings

2. From R&D to shipment, response time accelerated by 50%

Factory-direct company, with costs reduced by 15%+

"Engineers and workshops are separated by just a wall:
Molds can be adjusted on the same day as sample confirmation, and order inquiries can reach production line managers within 2 hours.
Urgent orders can trigger *dedicated production line insertion*.
Say goodbye to cross-company communication inefficiencies and improve decision-making efficiency by 50%."
✓ Customer benefits: Seize market opportunities and avoid stockouts during peak seasons
✓ We are the only factory in the industry with full vertical integration and control over the entire fishing light supply chain.
✓ We have mature production lines, and our warehouses always have stock available for standard products.
